Inspiration:

The new member of the M series that we are introducing this time is the M75.

It emphasizes the exquisite elegance of the M series while focusing on the sense of proportion—from the overall design to the finer details.

The most obvious sensory aspect is the side view. Based on a parallel structure as the main element, the bottom of the large slant surface has been proportionally separated; the side view adds a layered relationship to prevent the main body from appearing bulky, aiming to give the overall design richness without chaos.

The JOJO logo has become part of the counterweight design.

The lower cover at the counterweight assembly has added a long groove for easier removal.

Specs:

Size：320*139.5 mm, front & back height 23.5 mm & 34 mm(Include rubber feet)
Weight: Standard version with Alu weight bar and accent strip/ Deluxe Version PVD steel weight bar and accent strip：1.35kg/ 1.8kg
1.2mm Tri-mode hotswap PCB
Gasket mount/ Top mount
Default PC plate
Designer: JOJO.STUDIO

Firmware:

Battery:

The Battery is not included, please connect with customer support if you want to buy the battery from us.
Battery size：1800MA *2 Two 90 mm*30 mm*4 mm batteries connected in series, with a distance of 6 cm between the two batteries, and a 15cm exposed wire length. The connector is PH 1.25.

Pictures

75%

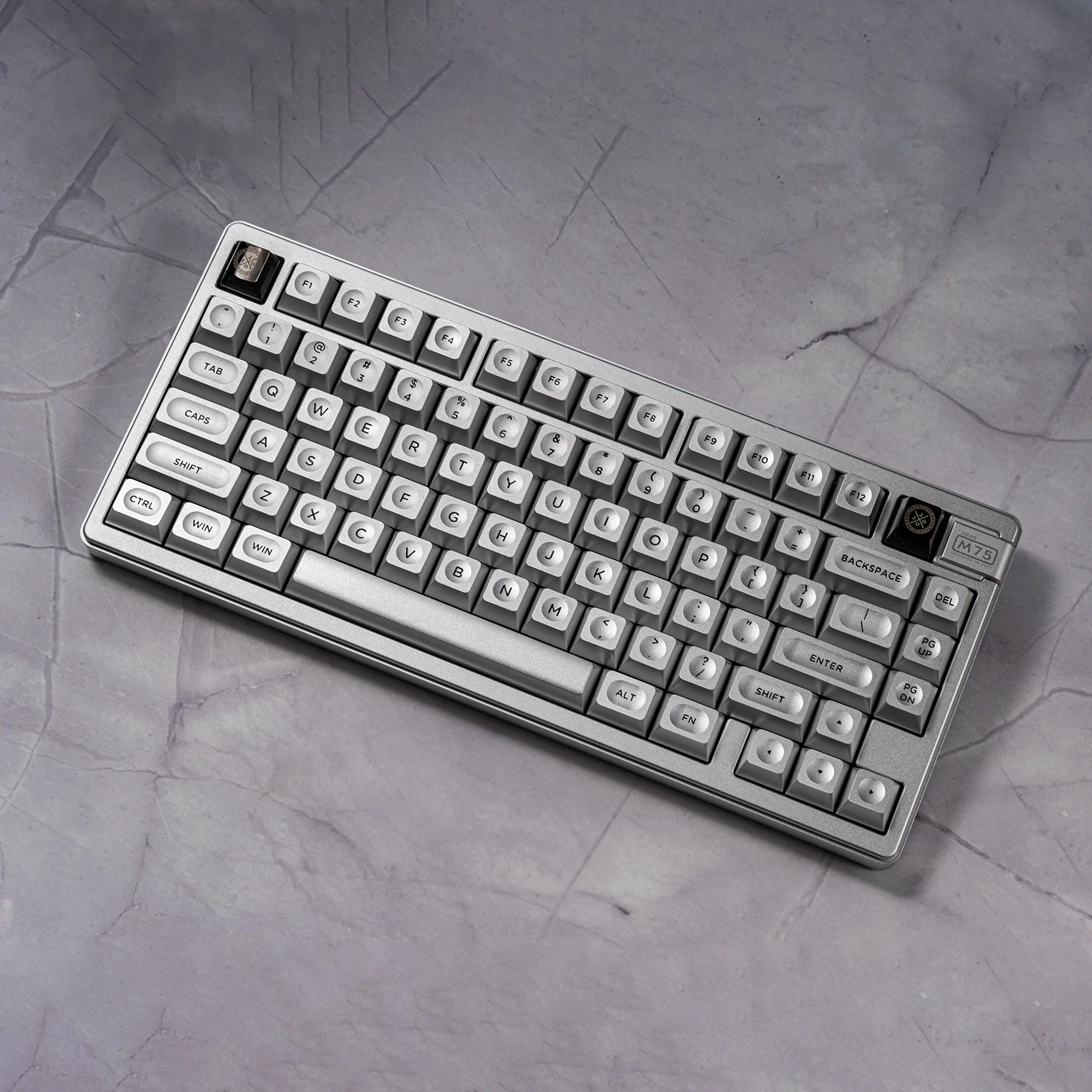

M75

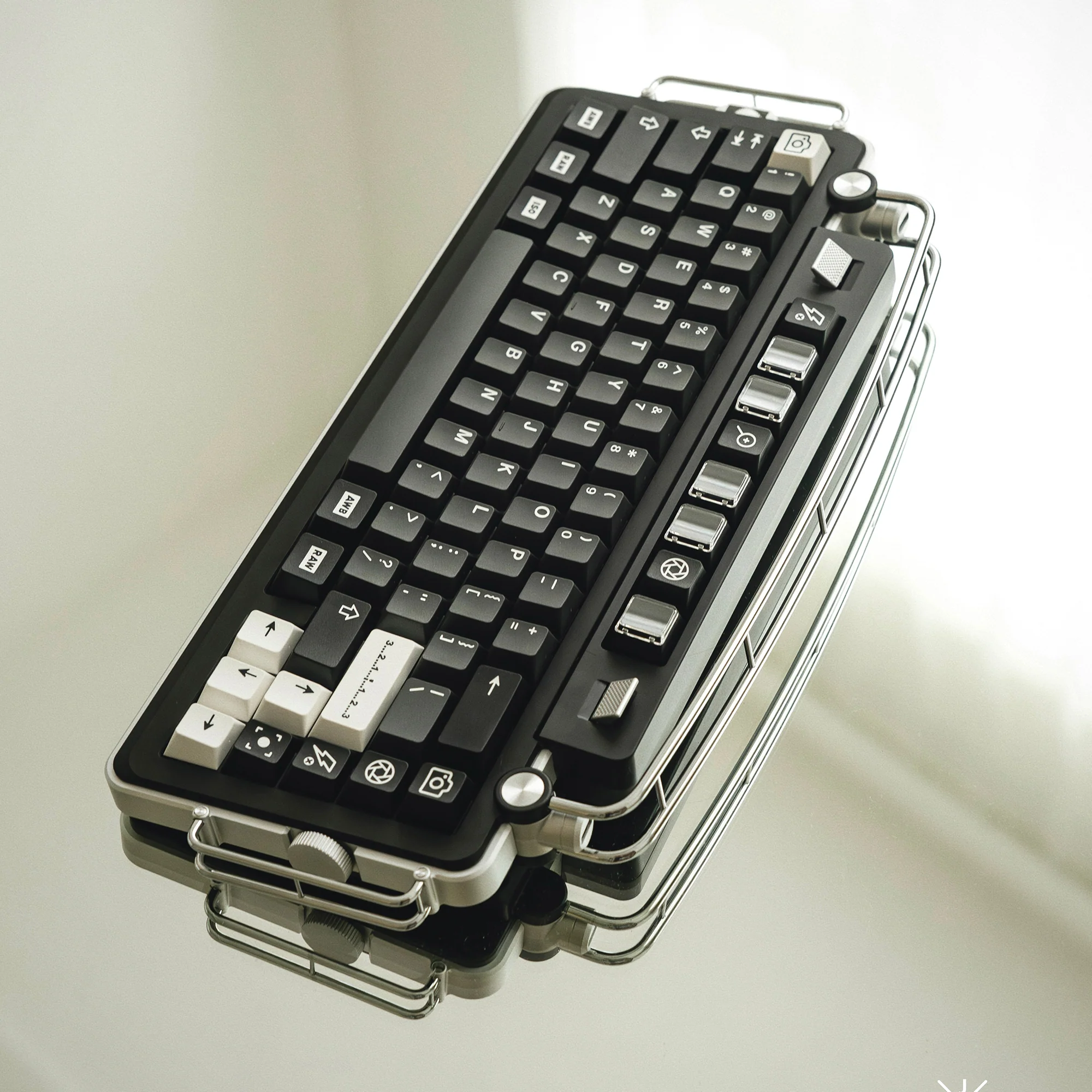

S73
